Description

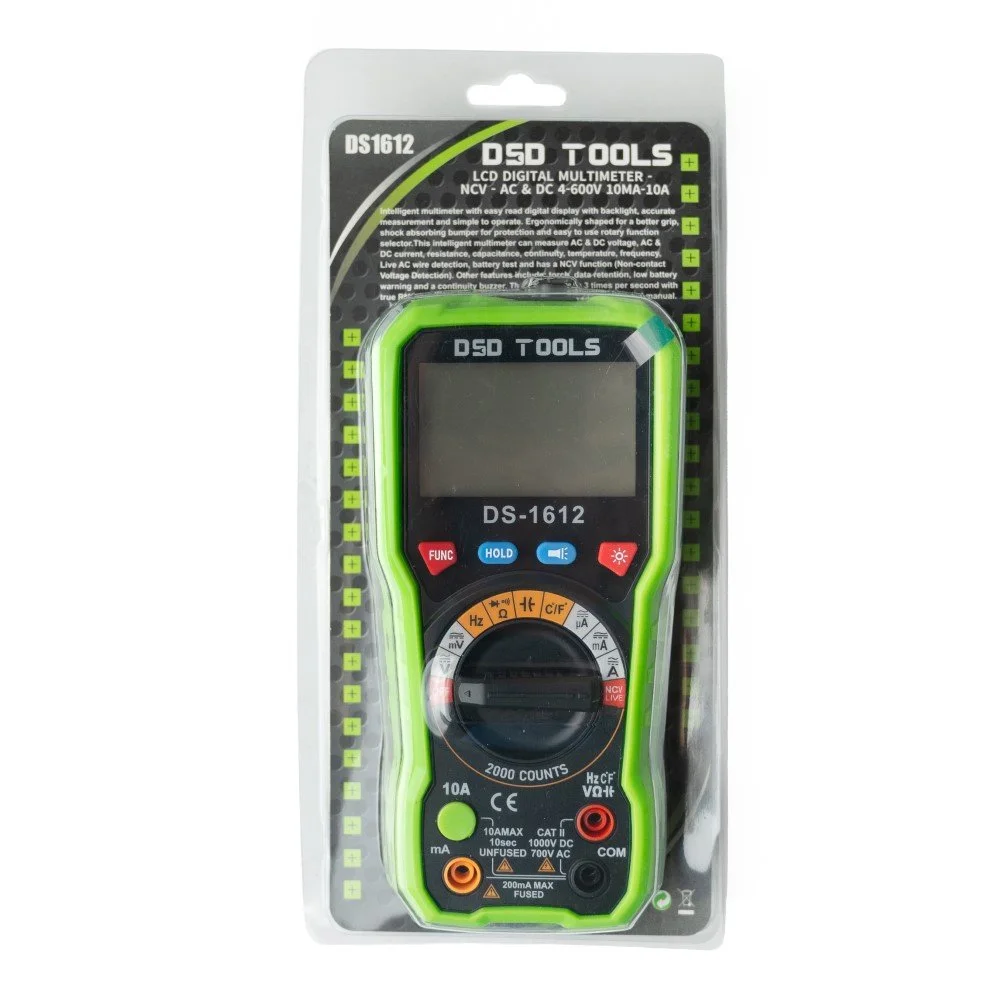

LCD DIGITAL MULTIMETER – NCV – AC & DC 4-600V 10MA-10A

This intelligent multimeter can measure AC & DC voltage, AC & DC current, resistance, capacitance, continuity, temperature, frequency, Live AC wire detection, battery test and has a NCV function (Non-contact Voltage Detection). Other features include; torch, data retention, low battery warning and a continuity buzzer. The sample rate is 3 times per second with true RMS (route mean square).

Voltage AC: 4V – 40V – 600V
Voltage DC: 4V – 40V – 600V
AC Current: 10mA – 100mA – 10A
DC Current: 10mA – 100mA – 10A
Resistance: 60Ω – 6kΩ – 60kΩ – 20MΩ
Battery test: 1.5V – 9V – 24V – 48V
Temperature: 0ºC – 999ºC
Capacitor function: 20nF – 200uF – 40mF
Frequency: 10Hz – 10kHz
NCV (Non-contact Voltage Detection)
Live AC wire detection
Back light
Data retention button
Continuity buzzer
Torch
Sample rate: 3 times per second with True RMS
Size: 155 x 70 x 55mm
Weight: 340grms
UKCA, RoHS

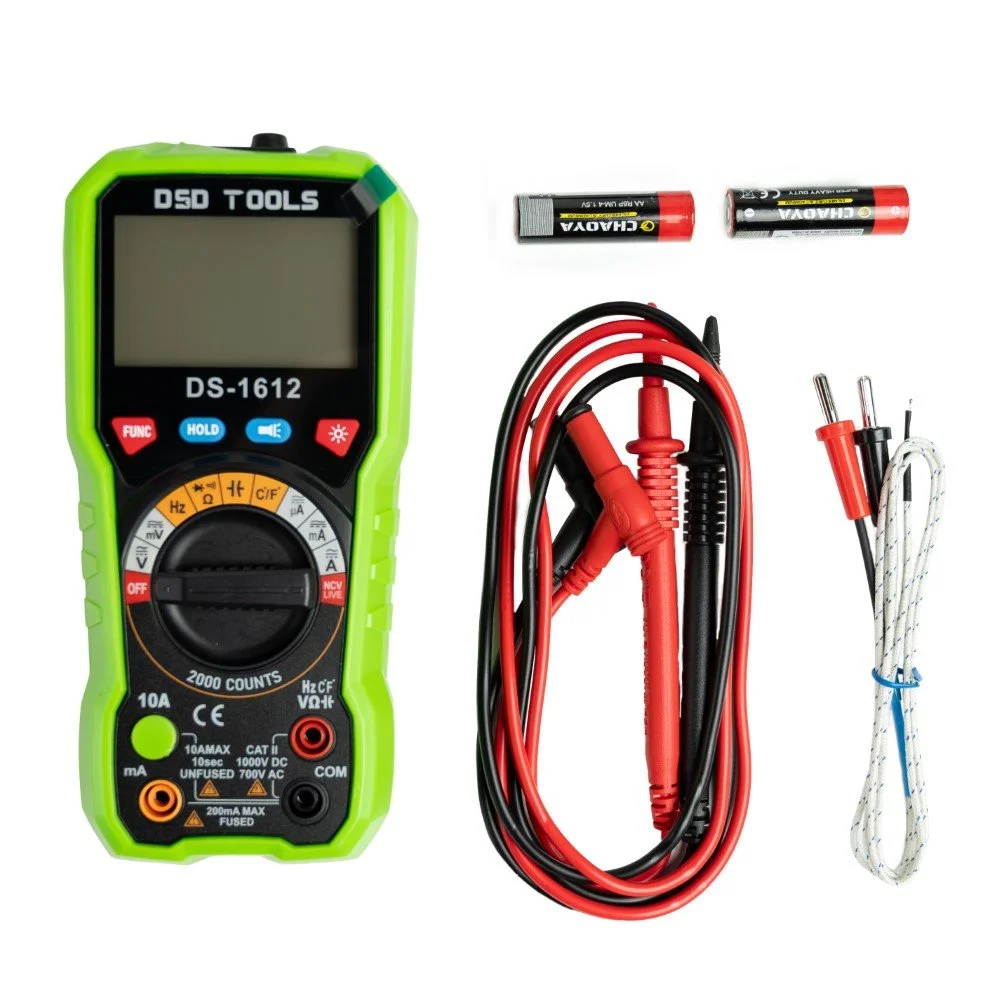

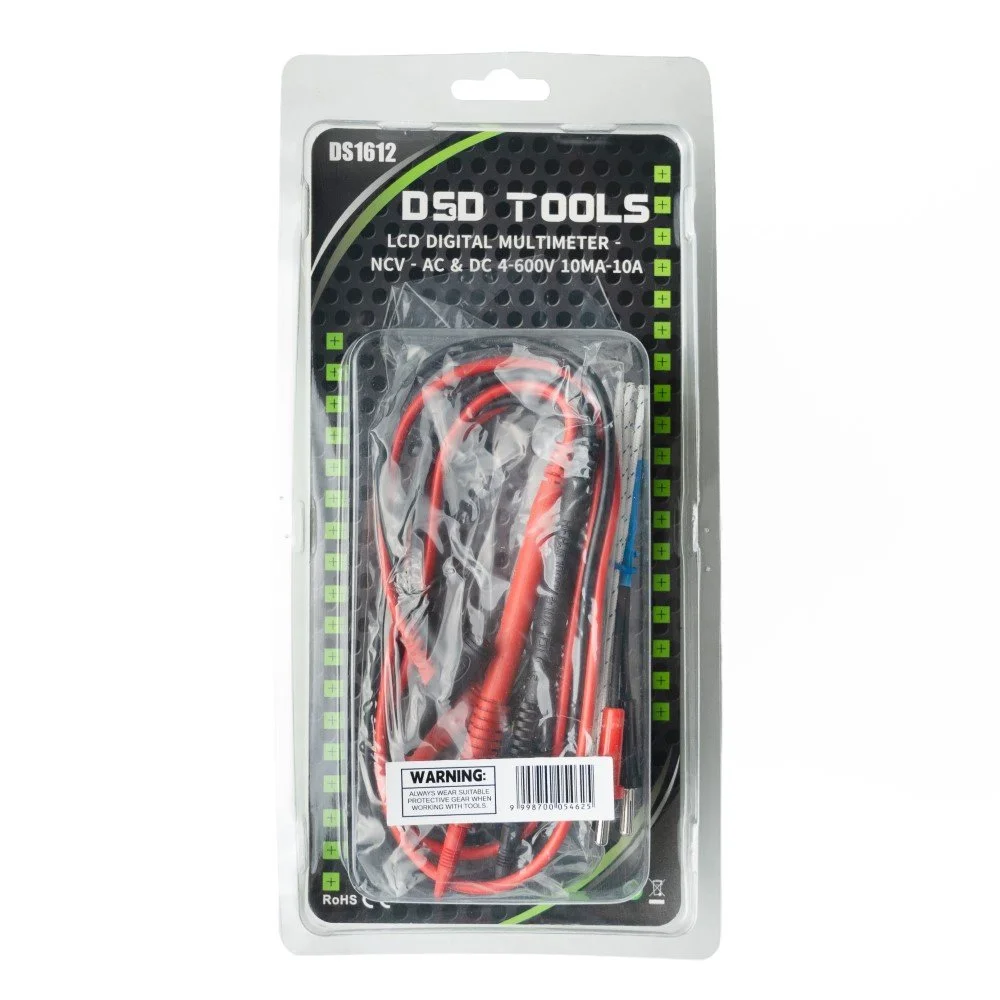

Battery & test leads included
