Timing Tool Set For Ford Engine 1.0 Ecoboost B-Max C-Max & Grand C-Max

Description

Timing Tool Set For Ford Engine 1.0 Ecoboost B-Max C-Max & Grand C-Max

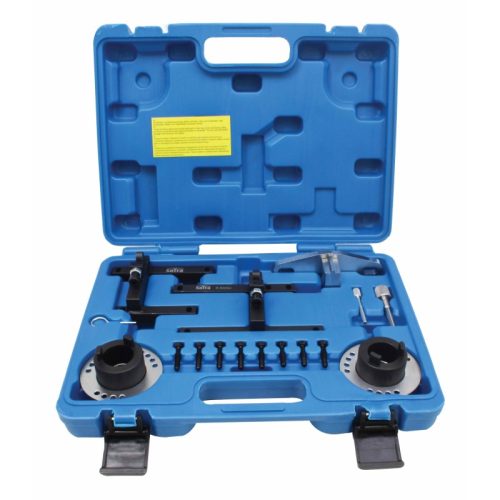

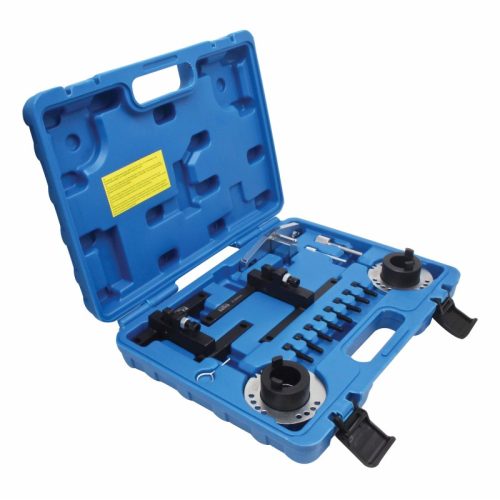

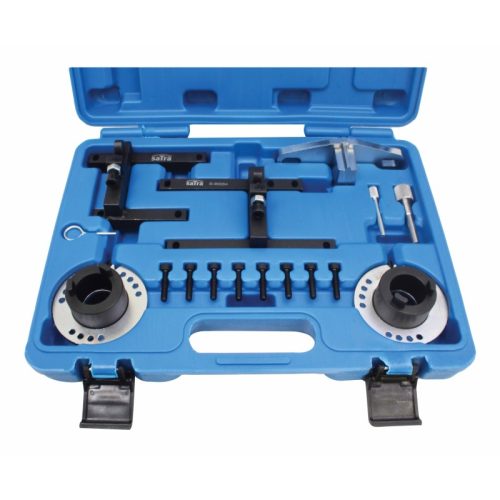

Engine adjustment tool, locking tool, blockade / fixing tool, 16 pieces

Includes important tools e.g. for the following works on Ford 1.0 3-cylinder EcoBoost / ECOnetic / SCTI engines from 2012 with VCT:

Professional engine repair.
Check and adjust camshaft control times
Timing belt change For VCT adjustment, the adjustment tool must be attached to the camshafts to renew and loosen the vibration damper, and the adjusters must be pressed and locked in zero position.
This applies to the following Ford models:

Ford: B-MAX, C-MAX (-11), C-MAX (-15), EcoSport, Fiesta (-13), Fiesta Active (-18), Focus (-11), Grand C-MAX (-11), Grand Tourneo Connect (-14), Mondeo (-15), Tourneo Connect (-14), Tourneo Courier (-14), Transit Courier (-14)

Suitable for the following engine code or identification letters:
1.0: M1CA, M1CB, M1DA, M1DC, M1DD, M1DH, M1FA, M1JA, M1JC, M1JE, M1JH, M1JJ, M1JL, M1JM, M1JP, M1JU, M2DA, M2DB, M2DC, M2GA, M2GB, P4JA, P4JB, P4JC, P4JD, SFCA, SFCB, SFCC, SFCD, SFDB, SFJA, SFJB, SFJC, SFJD, SFJE, SFJH, SFJJ, SFJK, SFJL, SFJP, XMJA, XMJB, XMJC, XMJD, YYJA, YYJB, YYJC, YYJD, YYJE, YYJF, YYJG 1.1: XPJA, XPJB, XPJC, XPJD, XYJA, XYJB, XYJC, XYJD, XYJE

Comparable to Ford original number

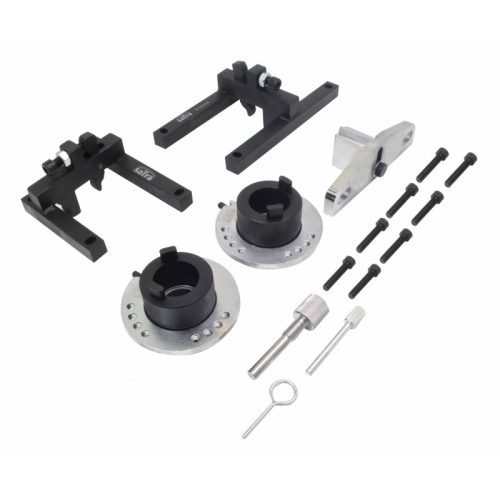

2 x camshafts – fixing tool = like OEM 303-1605.
2 x camshaft adjuster – adjustment tool VCT = like OEM 303-1606.
Crankshafts – fixing pin = as OEM 303-1604.
Flywheel – Fixation = as OEM 303-1602.
Tensioning castors – fixing pin = as OEM 303-1054.

Original part numbers and manufacturer numbers are for comparison purposes only.
